商品の詳細:
お支払配送条件:
|
| 製品名: | 水力軌道モーター | 変位: | 50CC |
|---|---|---|---|
| アプリケーション: | 農業機械、ウィンチ | 保証: | 12ヶ月 |
| オイル温度: | 正常35℃ 80℃ | 材料: | 鋳鉄 |
| ハイライト: | Hydraulic Orbit Motor BMR250,BMR250 hydraulic motor with crossover relief valve,25mm key shaft hydraulic motor |
||

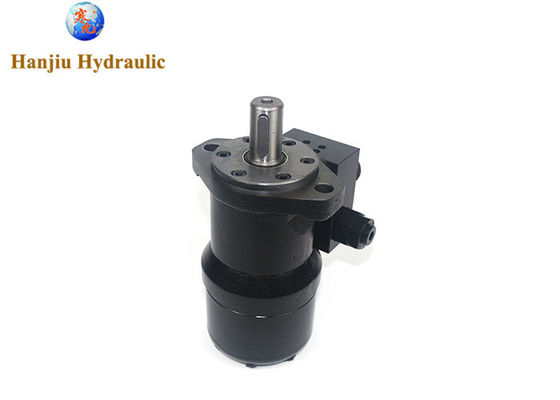

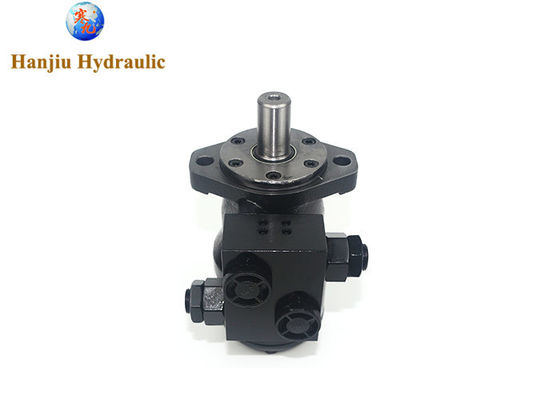

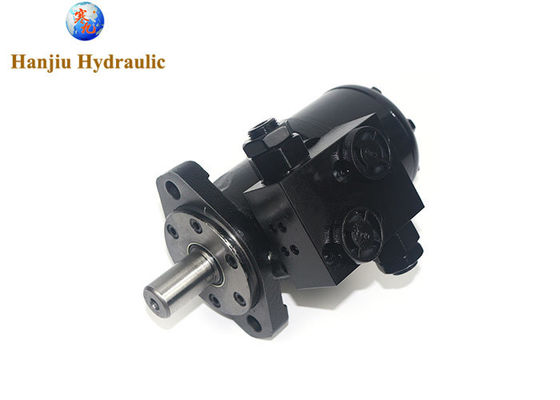

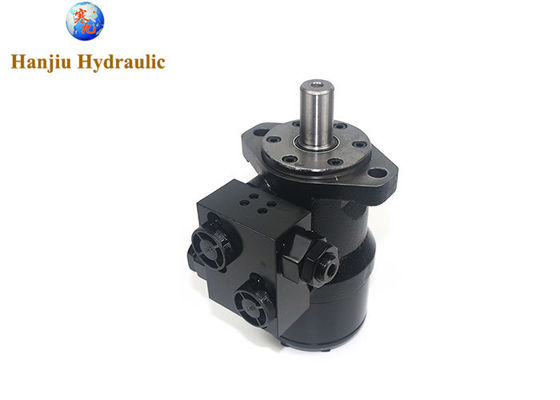

Hydraulic Orbit Motor BMR250, 2bolts flange , 25mm straight key shaft with crossover relief valve
The goods details:
type code :BMR-250-2-A-D-B+FYRHD-5-D
displacement :50cc
flange:2-3.5 Rhomb-flange , pilot Ø82.5×2.8
shaft:Shaft Ø25MM
port threads:G1/2
Crossover relief vavle
FYRHD--Flow rate 60L/min
pressure--5mpb
Main Specifications:
Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
| Type | BMR BMRS 36 |
BMR BMRS 50 |
BMR BMRS 80 |
BMR BMRS 100 |
BMR BMRS 125 |
BMR BMRS 160 |
BMR BMRS 200 |
BMR BMRS 250 |
BMR BMRS 315 |
BMR BMRS 375 |
|
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 |
|
1.hydraulic orbital motor structure and performance characteristics
① Adopting end-face flow distribution and axial flow distribution, simple and compact structure, high precision of flow distribution.
②The stator-rotor pair with set teeth has high mechanical efficiency and long life of high pressure operation.
③Adopting double angular joint ball bearings, it can withstand large radial and axial loads, low friction and high mechanical efficiency.
④Excellent design of flow distribution mechanism, featuring high precision of flow distribution and automatic compensation of wear.
⑤hydraulic orbital motor is allowed to be used in series and parallel, and should be connected with external oil drain port when used in series.
⑥hydraulic orbital motor can be used in series and parallel, and should be connected with drain port when used in series.
⑦ A variety of flange, output shaft, oil port and other mounting connection forms.
