商品の詳細:
お支払配送条件:
|
| 製品名: | 液圧スロールバルブ モーター | 変位: | 50CC |
|---|---|---|---|
| アプリケーション: | 切断機 | 保証: | 1年 |
| オイル温度: | 正常35℃ 80℃ | 材料: | 鋳鉄 |
| ハイライト: | 2 hole oval flange hydraulic motor,hydraulic orbital motor with 25mm key shaft,low speed high torque motor G1/2 oil ports |
||

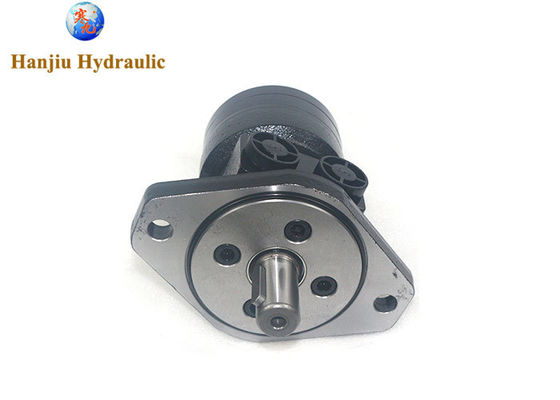

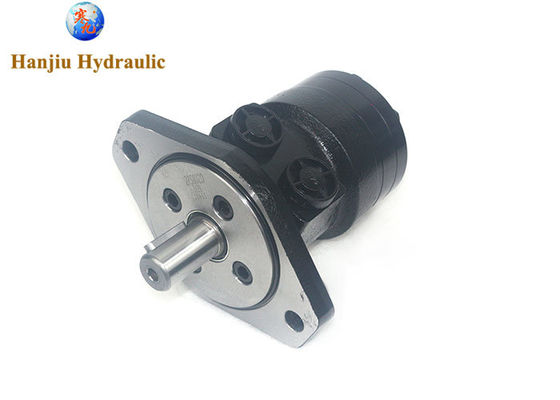

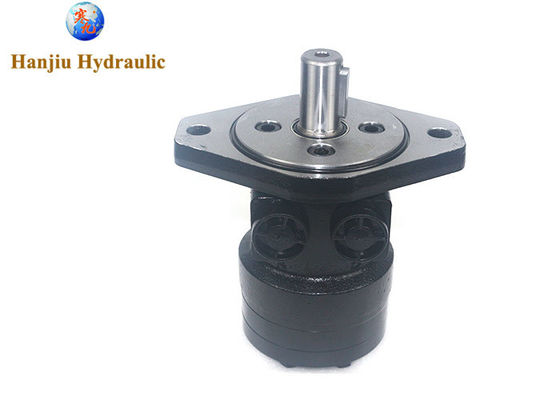

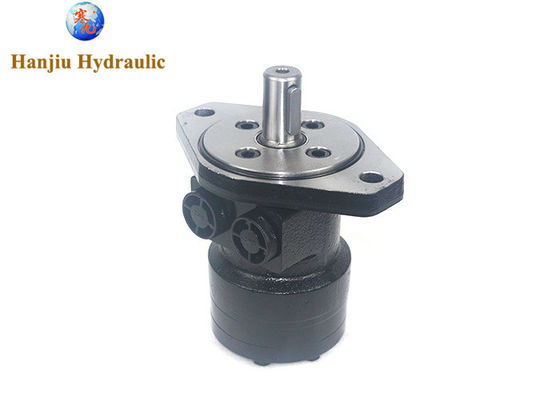

2 hole oval flange Hydraulic orbital motor BMRS-80-H7-A-G, 25mm key shaft, G1/2 oil ports
The goods details:
type code :BMRS-80-H7-A-G
displacement :80cc
flange:2-3.5 Rhomb-flange , pilot Ø82.5×2.8,146.05MM
shaft:Shaft Ø25MM
port threads:G1/2
Main Specifications:
Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
| Type | BMR BMRS 36 |
BMR BMRS 50 |
BMR BMRS 80 |
BMR BMRS 100 |
BMR BMRS 125 |
BMR BMRS 160 |
BMR BMRS 200 |
BMR BMRS 250 |
BMR BMRS 315 |
BMR BMRS 375 |
|
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 |
|
