商品の詳細:
お支払配送条件:
|
| アイテム: | 油圧モーター | タイプ: | 低速高いトルク |
|---|---|---|---|
| フランジ: | 4ボルトの四角フレンズ | 軸: | 主シャフト |
| マテリア: | 鋳鉄 | 保証: | 1年 |
| ハイライト: | 32mm hydraulic orbital motor,low speed high torque hydraulic motor,Sauer BMSY-315-E4BD hydraulic motor |
||

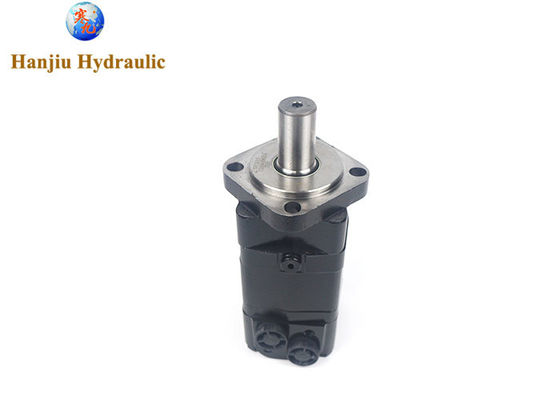

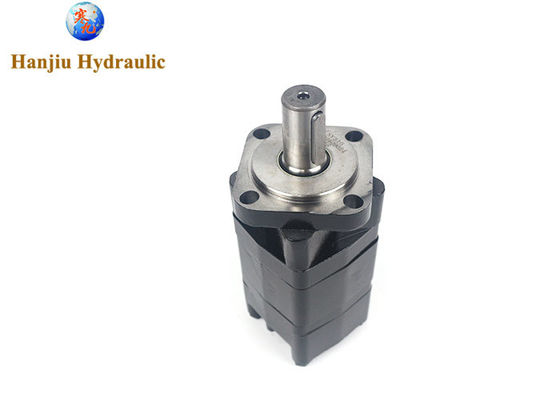

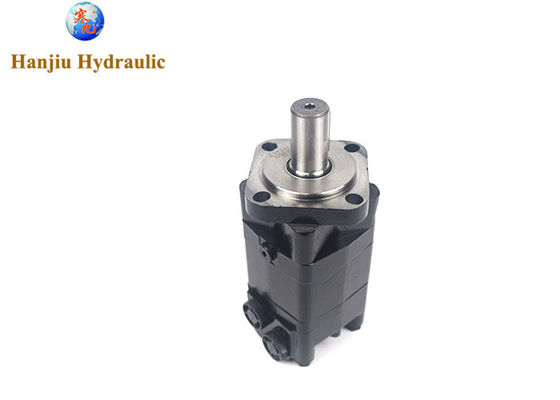

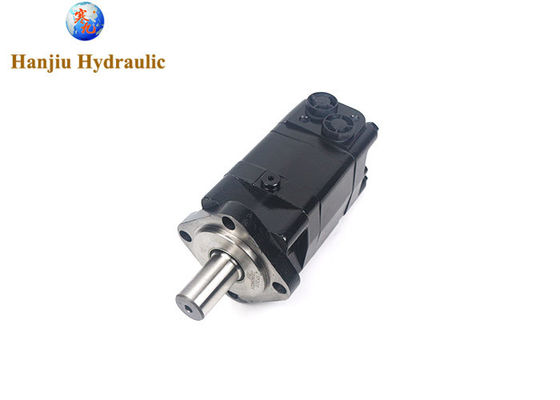

32mm Hydraulic Orbital Motor OMS315-151F050
Product details:
type code BMSY-315-E4-B-D
Displacement:315cc
Flange:
Shaft:
Ports:
BMSY Main Specifications:
| Type | BMSY 80 |
BMSY 100 |
BMSY 125 |
BMSY 160 |
BMSY 200 |
BMSY 250 |
BMSY 315 |
BMSY 375 |
|
| Geometric displacement (cm3 /rev.) |
80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11.8 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 17 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute
Contact a hydraulics specialist or HANJIU . Solve all your hydraulic motor problems
Typical Application Scenarios
Engineering machinery: excavator slewing motor, loader drive wheel motor.
Agricultural machinery: combine harvester cutting table drive, tractor hydraulic suspension system.
Marine equipment: ship anchor, underwater robot propeller.
Metallurgical equipment: rolling mill press down device, steel mill ladle tipping mechanism.
With the core advantages of “low speed and high torque, compact structure and shock resistance”, orbital motor is a cost-effective power element in the industrial field with outstanding performance under heavy load and severe working conditions. When choosing an orbital motor, it is necessary to weigh its advantages and disadvantages according to the actual needs (such as speed, torque, environmental conditions) in order to realize the best performance.
