Parker TGK0475ES030AAAA high torque motor, similar type BMTY470, straight key shaft ,6 hole modified flange orbit motor

Parker TGK0475ES030AAAA high torque motor, similar type BMTY470, straight key shaft ,6 hole modified flange orbit motor
Parker TGK0475ES030AAAA high torque motor, similar type BMTY470, straight key shaft ,6 hole modified flange orbit motor Parker TGK0475ES030AAAA high torque motor, similar type BMTY470, straight key shaft ,6 hole modified flange orbit motor Parker TGK0475ES030AAAA high torque motor, similar type BMTY470, straight key shaft ,6 hole modified flange orbit motor Parker TGK0475ES030AAAA high torque motor, similar type BMTY470, straight key shaft ,6 hole modified flange orbit motor

大画像 :  Parker TGK0475ES030AAAA high torque motor, similar type BMTY470, straight key shaft ,6 hole modified flange orbit motor

商品の詳細:
起源の場所: 中国
ブランド名: HANJIU
証明: CE
モデル番号: BMTY-470
お支払配送条件:
最小注文数量: 100セット
価格: Start from 95 usd
パッケージの詳細: カートン,箱,パレット
受渡し時間: 35~45営業日
支払条件: L/C,T/T,ウェスタン・ユニオン,ウェスタン・ユニオン
供給の能力: 年間300000セット
詳細製品概要
材料: 鋳鉄 モデル: BMTY-475-E6-G6-S5
固定: マグネト・マウント 変位: 470CM3/R
軸: 32mmの主シャフト ポート: 7/8-14 SAEポート
ハイライト:

Parker high torque hydraulic motor

,

BMTY470 similar hydraulic motor

,

6 hole flange orbit motor


Parker TGK0475ES030AAAA high torque motor, similar type BMTY470, straight key shaft ,6 hole modified flange orbit motor



the details as below


hanjiu code :BMTY-470-E6-G6-S5

Specification:

DISPLACEMENT 470CC
SERIES

PARKER TG, TGK MOTOR

PORT LOCATION Side Port, Staggered
SHAFT TYPE 32MM STRAIGHT KEY
PORT SIZE 7/8-14 SAE
MAXIMUM SPEED @ CONTINUOUS FLOW 191 rpm/287rpm
FLOW RATE 75l/min
RPM [MAX]  287rpm
DUTY Standard-Duty
GEROTER/GEROLER OPTIONS Standard
MOUNTING TYPE 6-Ø13.5 Rhomb-flange Ø106.4,
pilot Ø82.5×6.3
MOTOR TYPE Disc Valve

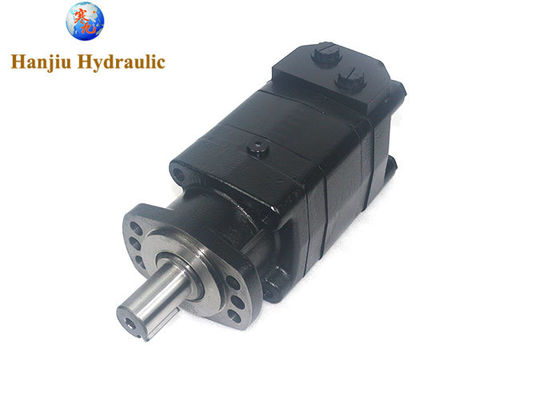

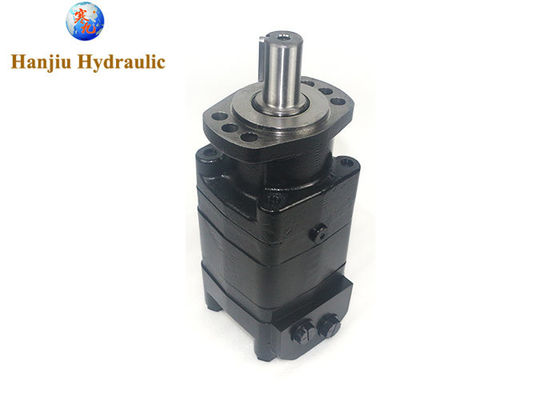

Parker TGK0475ES030AAAA high torque motor, similar type BMTY470, straight key shaft ,6 hole modified flange orbit motor 0

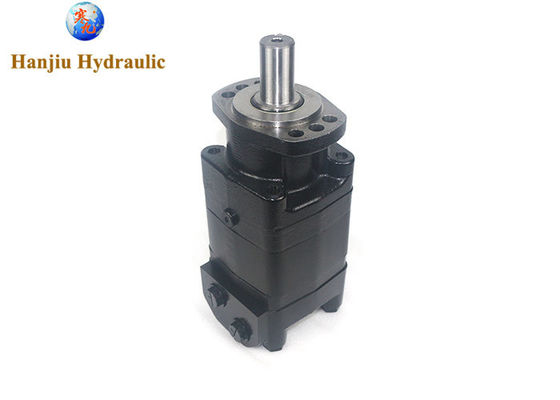

Parker TGK0475ES030AAAA high torque motor, similar type BMTY470, straight key shaft ,6 hole modified flange orbit motor 1

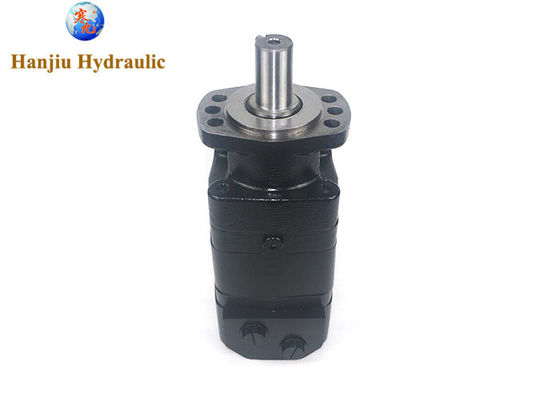

Parker TGK0475ES030AAAA high torque motor, similar type BMTY470, straight key shaft ,6 hole modified flange orbit motor 2



As an experienced small-to-medium-sized supplier, Hanjiu Company has fully leveraged its flexibility. We understand that different customers have varying equipment requirements and budget plans, so we have broken away from rigid pricing models. We can provide flexible pricing solutions based on the scale of customer orders, cooperation models, and personalized needs. Whether it's small-batch customized orders or long-term stable procurement partnerships, customers can feel our commitment to “affordable pricing.” This flexible pricing does not come at the expense of quality. Instead, it is achieved through optimizing production processes and improving management efficiency, ensuring profit margins while passing on benefits to customers, truly fulfilling the promise of “high cost-effectiveness.”


More importantly, Hanjou Company has always regarded quality as the lifeline of its survival and development. The company boasts a professional R&D team that leverages years of industry experience and extensive technical expertise to continuously innovate and optimize products, ensuring that every orbital motor meets stringent quality standards. From tooth profile design to sealing technology, from bearing structure to overall performance, every detail is meticulously refined and rigorously tested. Robust production capabilities provide a solid foundation for consistent quality. Advanced production equipment, standardized production processes, and a rigorous quality control system ensure that Hanjiu Company's products match the reliability, durability, and efficiency of similar products from large suppliers.


Today, Hanjiu Company's orbital motors are exported to numerous countries worldwide and widely applied in various fields such as agricultural machinery, construction machinery, and industrial automation. This not only reflects recognition of our product quality but also serves as the best testament to our business philosophy of “flexible pricing, affordable prices, and quality assurance.”


Choose Hanjiu, choose peace of mind and affordability. We will work with you to create a bright future with our professional technology, high-quality products, and attentive service.
