| アイテム: | 方向制御バルブ | モデル: | 2 P40 |
|---|---|---|---|
| 銀行: | 2 銀行 | 流量: | 40 LPM |
| 動作圧最大: | 250バー | 流れの分割: | 8 - 12のLPM |
| コントロール: | マニュアル | 適用する: | 農業機 |
| 関数: | オープンセンター | 港を越える 電力: | はい |
| ハイライト: | P40 Series hydraulic control valve,40L monoblock hydraulic valve,2 spool directional control valve |
||
Welcome to China Hanjiu Hydraulic
The company manufacture MANY TYPE, MANY FLOW, hydraulic control valves for agriculture, engineering, special equipment
Serve OEM, hydraulic distributors
Welcome to contact us to learn how we can better assist your business

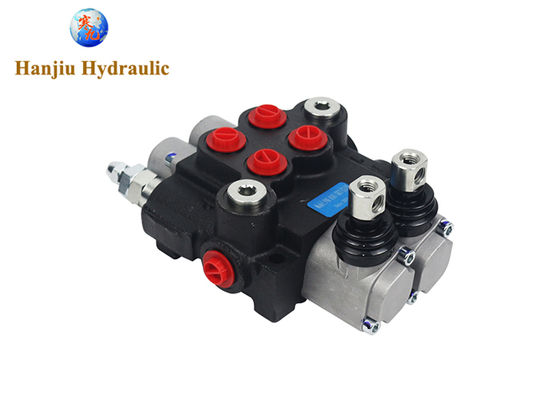

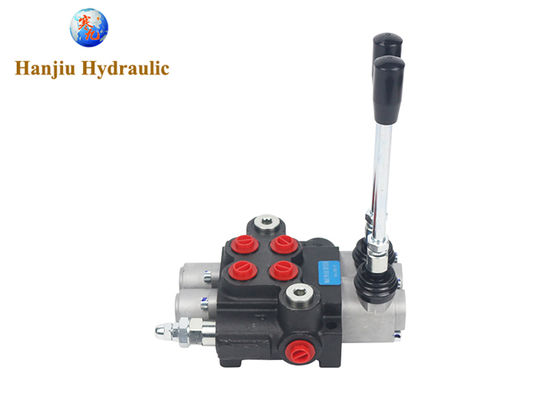

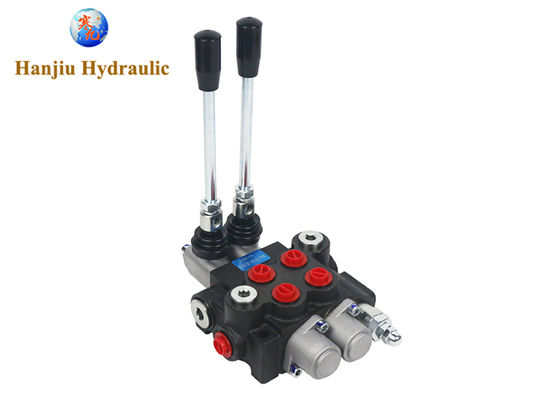

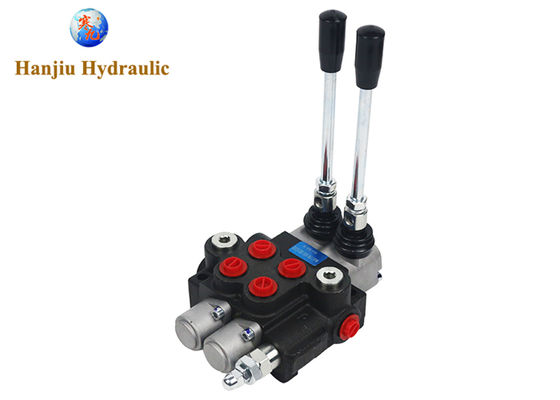

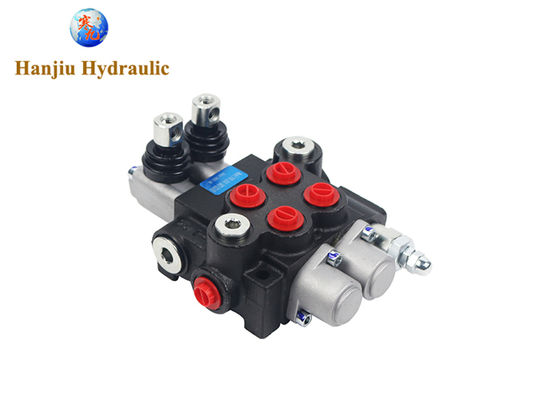

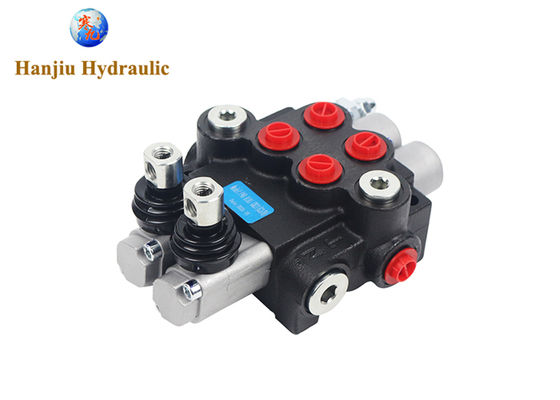

This product is P40 series hydraulic valve
Please see the product introduction below
1. Product parameters
| Model No. | 2 P40 |
| Function | Open center for Cylinder or Motor |
| Section | 2 Spool |
| Flow | Nominal flow rate 40 lpm ( 10.6 US GPM ) |
| Pressure | 250 bar max ( 3626 psi ) |
| Temperature range | -40℃ ~ 80℃ ( -40℉ ~ 176 ℉ ) |
2. Features & More function:
P40 series Hydraulic Directional Control Valves are economical monoblock type valves with various applications and features of
compact structure, low price, stable performance and high versatility.
Control type: manual, cable, pneumatic, electro-hydraulic, solenoid, joystick, etc.
Circuit type: parallel connection
Structure: Monoblock struction , 1-7 section
3. Application
Tractors, both ends, flatbed trucks, truck-mounted cranes, agricultural equipment
4. More recommended products
| Series | Type | Control |
| P40 | Monoblock | Manual |
| P40 | Monoblock | Solenoid |
| P40 | Monoblock | Electro-hydraulic |
| P40 | Monoblock | Electro-pneumatic |
| P40 | Monoblock | Pneumatic |
| P80 | Monoblock | Manual |
| P80 | Monoblock | Solenoid |
| P80 | Monoblock | Electro-hydraulic |
| P80 | Monoblock | Electro-pneumatic |
| P80 | Monoblock | Pneumatic |
| P120 | Monoblock | Manual |
| HSV | Sectional | Solenoid |
| HDCF50 | Sectional 1 - 8 |
Solenoid |
| DCV20 | Sectional 1-6 |
Manual |
| DCV40 | Sectional 1 - 8 |
Manual |
| DCV60 | Sectional 1-12 |
Manual |
| DCV100 | Sectional 1-12 |
Manual |
| DCV140 | Sectional 1-12 |
Manual |
| DCV200 | Sectional 1-12 |
Manual |
| DCV40 | Sectional 1 - 8 |
Pneumatic |
| DCV60 | Sectional 1-12 |
Pneumatic |
| DCV100 | Sectional 1-12 |
Pneumatic |
| DCV140 | Sectional 1-12 |
Pneumatic |
| DCV200 | Sectional 1-12 |
Pneumatic |
| DCV40 | Sectional 1-8 |
Electro-pneumatic |
| DCV60 | Sectional 1-12 |
Electro-pneumatic |
| DCV100 | Sectional 1-12 |
Electro-pneumatic |
| DCV140 | Sectional 1-12 |
Electro-pneumatic |
| DCV200 | Sectional 1-12 |
Electro-pneumatic |
| DCV40 | Sectional 1-8 |
Electro-hydraulic |
| DCV60 | Sectional 1-12 |
Electro-hydraulic |
| DCV100 | Sectional 1-12 |
Electro-hydraulic |
| DCV140 | Sectional 1-12 |
Electro-hydraulic |
| DCV200 | Sectional 1-12 |
Electro-hydraulic |
| Flow Regulator | ||
| ZT12 | ZT12-1 | Manual |
| ZT12-2 | ||
| ZT12-3 | ||
| ZT12-4 | ||
| ZT12-5 | ||
| ZT20 | ZT20-1 | Manual |
| ZT20-2 | ||
| ZT20-3 | ||
| ZT20-4 | ||
| ZT20-5 | ||
| CDB15 | CDB15.1 | Manual |
| CDB15.2 | ||
| CDB15.3 | ||
| CDB15.4 | ||
| CDB15.5 | ||
| CDB15.6 | ||
| CDB20 | CDB20.1 | Manual |
| CDB20.2 | ||
| CDB20.3 | ||
| CDB20.4 | ||
| CDB20.5 | ||
| CDB20.6 |
