商品の詳細:
お支払配送条件:
|
| 製品名: | 水静止装置,ステアリングバルブ | オイルポート: | G1/2 |
|---|---|---|---|
| 品質: | OEM品質 | 材料: | 鋳鉄 |
| 変位: | 125cc | アプリケーション: | トラクター、ローダー、掘削機 |
| ハイライト: | GP Metering Pump for hydraulic steering,Metering Pump compatible with 950G models,Hydraulic steering pump with warranty |
||

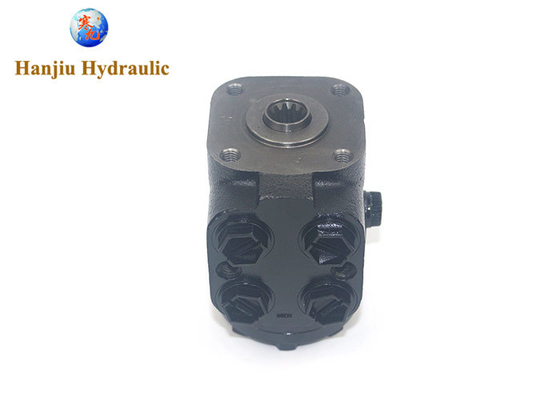

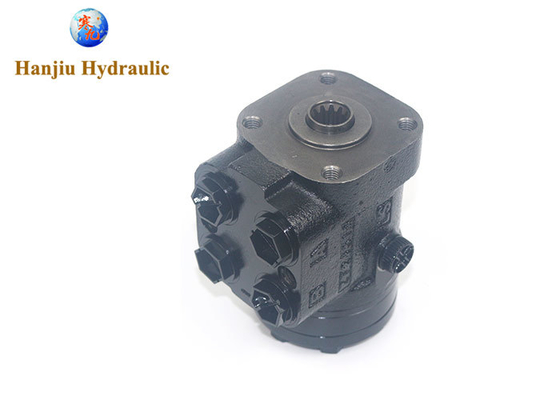

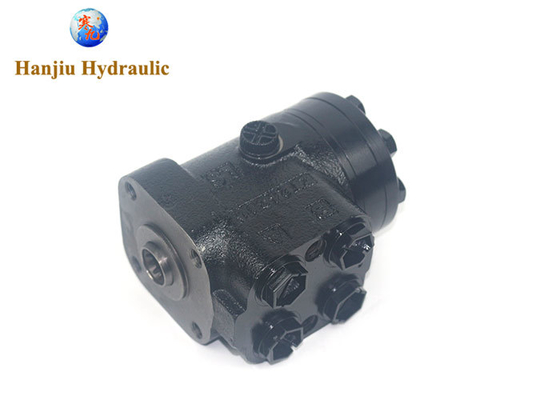

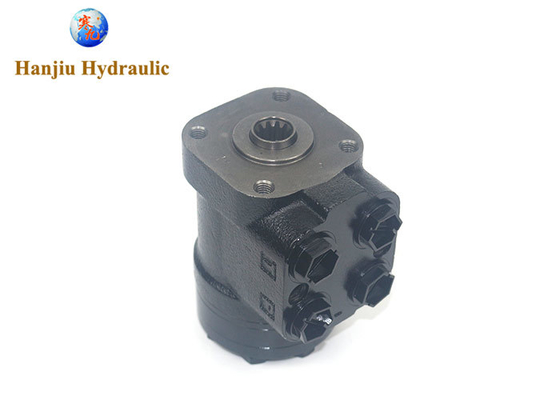

Hanjiu hydraulic supply 101S series hydraulic steering units,
with control type like, open center non-reation, open center reation
closed center, and load sensing type, widely used on tractors, forklifts,
backhoe loaders, harvesters, excavators....
same quality, high performance as original types
specification:
| Parameters | Series 101-*-***-**-* |
||||||||||
| Function code | 1,2,4 | 1,4 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pressure(Mpa) | 17.5 | ||||||||||
| Relief Valve Pressure Settings ( MPa) | 06,07,08,10,12,14,15,16,17.5 | ||||||||||
| Shock Valve Pressure Settings ( MPa) | 12,13,14,16,18,20,21,22,23.5 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
Other types we offer
| 1198749 |
| 2477868 |
| 6E6406 |
| 1198748 |
| 1198767 |
| 3496093 |
| 1477343 |
Cat hydraulic parts play a vital role in construction machinery, ensuring the smooth operation of hydraulic systems. Here's a closer look at Catr hydraulic components:
1. Hydraulic pump:
Cat hydraulic pumps are responsible for converting mechanical energy into hydraulic energy to power the hydraulic system. For example, the Cat 627G Hydraulic Vane Pump (Models 202-1335, 2021335) is one of them, which provides a stable power source for a specific hydraulic system.
2. Hydraulic valve:
Cat hydraulic valves are used to control the flow direction and flow of hydraulic oil to achieve various functions of the hydraulic system. For example, Cat E312 excavator hydraulic oil tank return check valve (Cat E312 check valve) is the key component to control the direction of hydraulic oil flow.
3. Hydraulic pipeline:
The hydraulic line is connected to the hydraulic components and transports the hydraulic oil. The hydraulic system of Caterpillar hydraulic excavators, such as the 320D/320D L models, includes a large number of hydraulic lines that ensure a smooth flow of hydraulic oil through the system.
4. Hydraulic motor and hydraulic cylinder:
Cat hydraulic motors and cylinders convert hydraulic energy into mechanical energy to drive load movement. They are widely used in Cat's various construction machinery, such as excavators, loaders, etc.
5. Other hydraulic accessories:
In addition to the above main components, Cat also provides a variety of hydraulic parts, such as hydraulic oil filter truck parts, hydraulic rock drill parts, hydraulic top hydraulic parts, etc., which play an indispensable role in the hydraulic system.
6. Repair and replacement parts:
Cat also offers a variety of repair and replacement parts, such as hydraulic pump lifters, regulators, oil seals and more, which play a critical role in hydraulic system maintenance.
In summary, Cat hydraulic components include major components such as hydraulic pumps, hydraulic valves, hydraulic lines, hydraulic motors and hydraulic cylinders, as well as other hydraulic parts such as hydraulic oil purifier truck parts and hydraulic rock drill parts. Together, these components form the core of Cats hydraulic system and ensure the efficient and stable operation of Cat construction machinery.
Hanjiu technology offer some of hydraulic components for CAT parts
quality is same as original, best serv
