商品の詳細:
お支払配送条件:
|

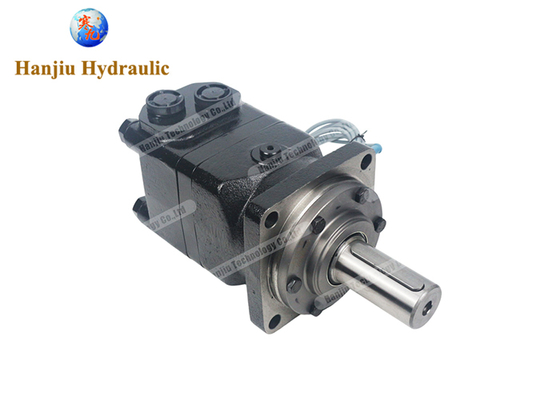

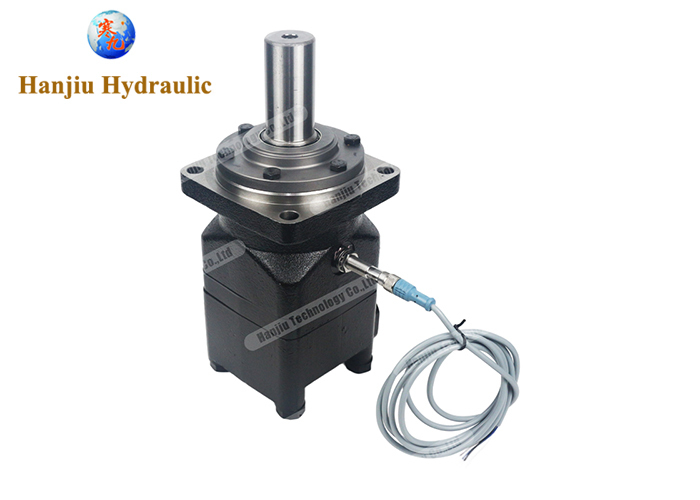

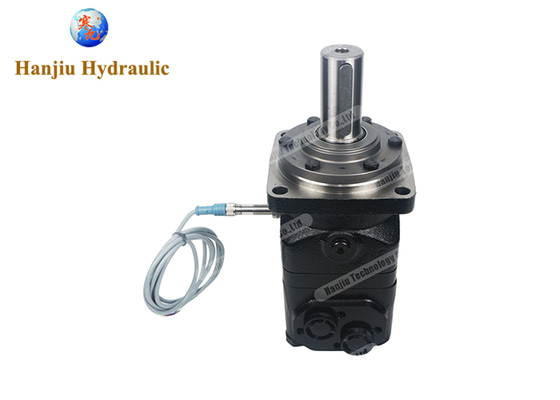

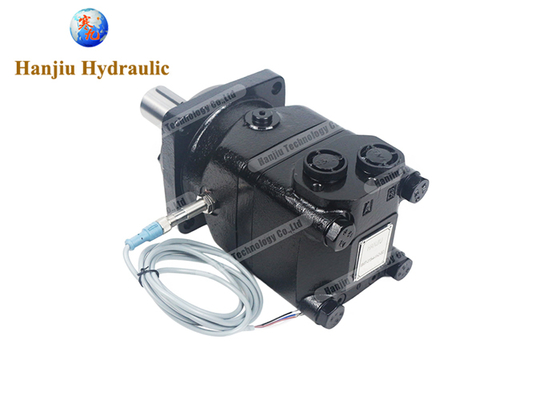

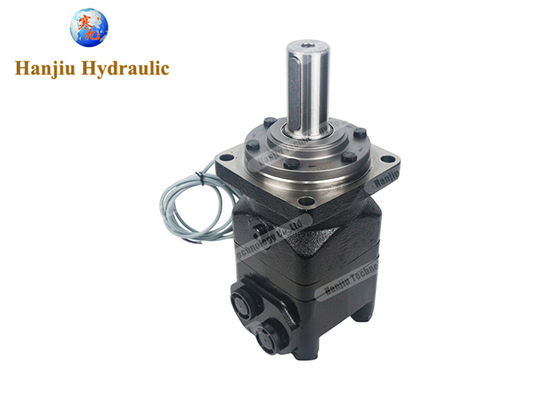

| 製品: | 液圧モーター | モデル番号: | BMT-315-4-MD-SD |
|---|---|---|---|
| 変位: | 315 cc | ブランド: | ハンジュー |
| ハイライト: | Hanjiu BMT-315 hydraulic motor,315cc hydraulic motor with key shaft,84 pulses/rev orbit hydraulic motor |
||
| Attribute | Value |
|---|---|
| Product Type | Hydraulic Motor |
| Model Number | BMT-315-4-M-D-SD |
| Displacement | 315 cc |
| Brand | Hanjiu |
| Shaft Type | 45mm Cone shaft 1:10 |
| Geometric Displacement | 315 cm³ |
| Type | BMT 160 | BMT 200 | BMT 230 | BMT 250 | BMT 315 | BMT 400 | BMT 500 | BMT 630 | BMT 800 |
|---|---|---|---|---|---|---|---|---|---|
| Displacement (cm³/rev) | 161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 |
| Max. Speed (rpm) | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
| Max. Torque (N.m) | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
| BMT Standard | BMTE Series | BMTJ Series |
|---|---|---|
| BMT 160 | BMTE 230 | BMTJ 230 |
| BMT 200 | BMTE 230 | BMTJ 230 |
| BMT 250 | BMTE 250 | BMTJ 250 |
| BMT 315 | BMTE 315 | BMTJ 315 |
| BMT 400 | BMTE 400 | BMTJ 400 |
| BMT 500 | BMTE 500 | BMTJ 500 |
| BMT 630 | BMTE 630 | BMTJ 630 |
| BMT 800 | BMTE 800 | BMTJ 800 |
Hanjiu Technology is the leading manufacturer of hydraulic motors in China, specializing in orbit motors, low speed high torque motors, and torque motors. Our comprehensive product range matches major brands including Danfoss, M+S, Charlynn, White, and Parker. We offer fast lead times, competitive pricing, and exceptional service to make your hydraulic systems efficient and affordable.
