商品の詳細:
お支払配送条件:
|
| アイテム: | モノブロックバルブ | 材料: | 鋳鉄 |
|---|---|---|---|
| に適用します: | トラクター車,農業機械 | スプール: | 4コイル |
| 最高操作圧力: | 250バー | コントロールタイプ: | 春回り 休止回り |
| ハイライト: | Hydraulic Directional Valve 40L 4 Spools,Directional Control Valve G3/8 Ports,4 Spool Hydraulic Valve with Warranty |
||

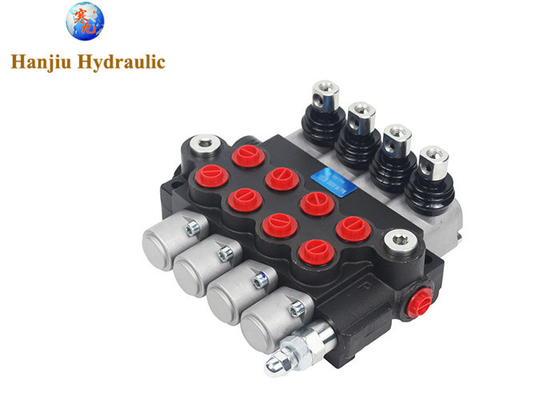

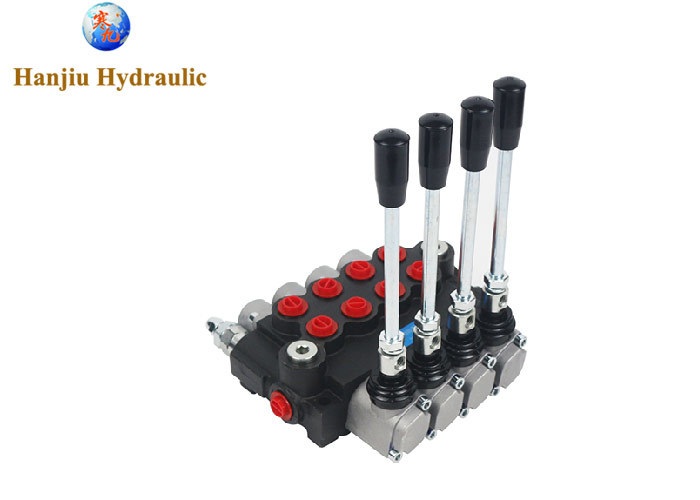

4P40-1A1A1A1A1GKZ1 hydraulic direction valve 40liters, monoblock valves G3/8 ports size
type code
P40-4 manual spring type
Code: P40 liters
Sections: 4
Relief Valve Setting Pressure:180(bar)
Intlet Port Option: G3/8
Control Method Option: manual control +floating control
Spool Function: 3 Positions, double acting;
Spool Returning Way:spring return
Working Port Option: G3/8
Outlet Port Option: G3/8
| flow rate | 40 liters |
| number of spools | 4 spools |
| inlet section valve | side inlet, with relief valve |
| relief valve set pressure | 200bar |
| inlet port size | G3/8 |
| spool type | 3 Positions, Double Acting |
| handle side arrangement | standard type |
| spool cap side arrangement | 3position, spring return,manual control,detent control, |
| working section arrangement | standard type |
| work port size | G3/8 |
| outlet section type | top outlet,side |
| outlet port size | G3/8 |
Different types
