| アイテム: | ディスク弁モーター | モデル: | BMK10 |
|---|---|---|---|
| 変位: | 940CC | フランジ: | 127.0は[5.00] DIA.を操縦する。 |
| シャフト: | 16teethスプライン シャフト | ポート: | 1.3125-12 UN-2B SAEのOリングは港をぐらつかせた |
| ハイライト: | BMK10 hydraulic geroler motor 940CC,spline shaft hydraulic motor 4-bolt flange,low speed high torque hydraulic motor |
||

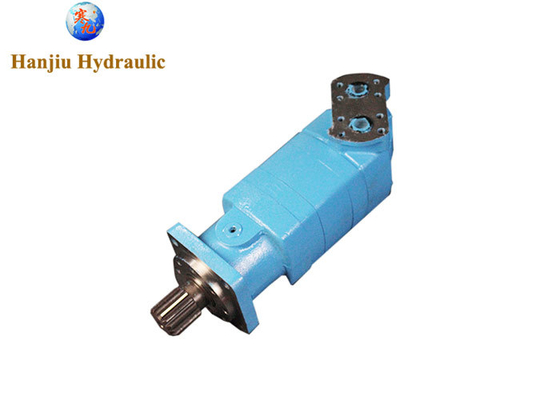

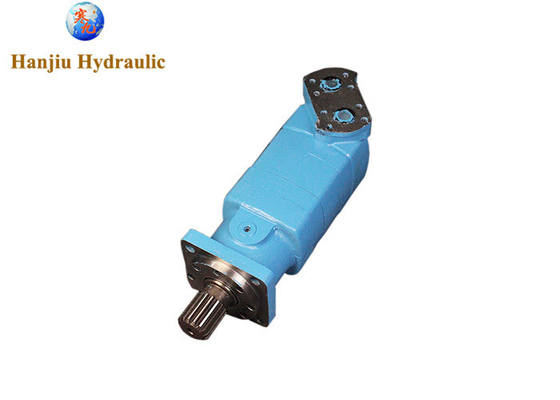

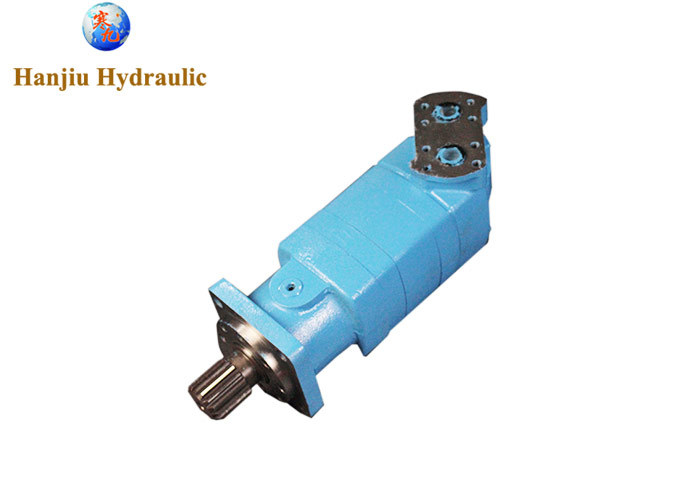

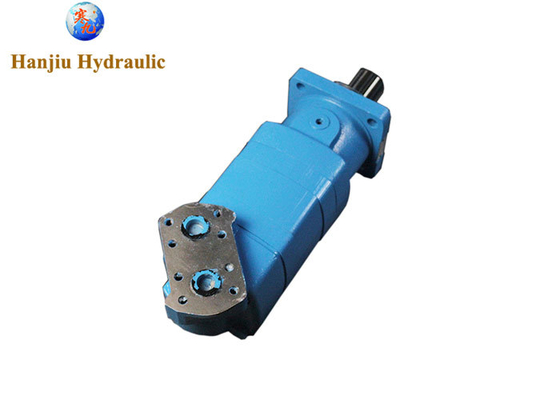

HANJIU BMK10 series hydraulic disc valve motors equivalent of charlynn 10000 series motor
| Series | BMK10-940=119-1047 |
| Displacement | 940cm³/r |
| Mounting Type | STANDARD, 4 BOLT; 127.0 mm PILOT DIA |
| Shaft Type | 53.98 [2.125] DIA. FLAT ROOT |
| Maximum Operating Temperature | 180 °F |
| Output Shaft Size | Spline shaft |
| Overall Height | 5.79 in |
| Overall Length | 17.74 in |
| Overall Width | 5.91 in |
| Seal Type | Standard |
| Drain Connection Size |
1 1/4 inch Split Flange
|
Main Specification
| Type | BMK10 350 |
BMK10 480 |
BMK10 665 |
BMK10 940 |
|
| Geometric displacement (cm3 /rev.) |
351 | 479 | 638 | 933 | |
| Max.speed (rpm) | cont. | 500 | 350 | 250 | 178 |
| int. | 790 | 560 | 400 | 280 | |
| Max.torque (N•m) | cont. | 1050 | 1480 | 2080 | 2750 |
| int. | 1400 | 1980 | 2600 | 3400 | |
| Max.pressure drop (MPa) |
cont. | 20.5 | 20.5 | 20.5 | 19 |
| int. | 27.5 | 27.5 | 26 | 24 | |
| Max.flow (L/min) | cont. | 170 | 170 | 170 | 170 |
| int. | 265 | 265 | 265 | 265 | |
Eaton similar type motors are available we belows:
10000 (119-) HANJIU BMK10
119-1044-003
119-1045-003
119-1046-003
119-1047-003
119-1032-003
119-1033-003
119-1034-003
119-1035-003
119-1040-003
119-1041-003
119-1028-003
119-1029-003
119-1042-003
119-1043-003
119-1030-003
119-1031-003
